ProKit Slide. Next level PCBA testing.

3d AssetShad Hall v005 REN 4 3

Parallel drive technology

High-precision, high-end technology from the large production lines.

Designed for very large volumes

Designed for full automation

a new testing experience

with high-tech test equipment

High stability and contact precision

Thanks to high-precision contact pins with excellent durability.

Short lead times thanks to large in-house production capacities

ProKit Slide combines our experience in metal precession technology with our expertise in electronic testing technology. ProKit Slide is robust, highly precise, offers excellent contact properties and permanent process and repeat accuracy. In addition, our test fixture system is designed both for manual use and for immediate or subsequent full automation.

Ihr Weg in eine voll­auto­­mati­sierte Produkt­ion.​​

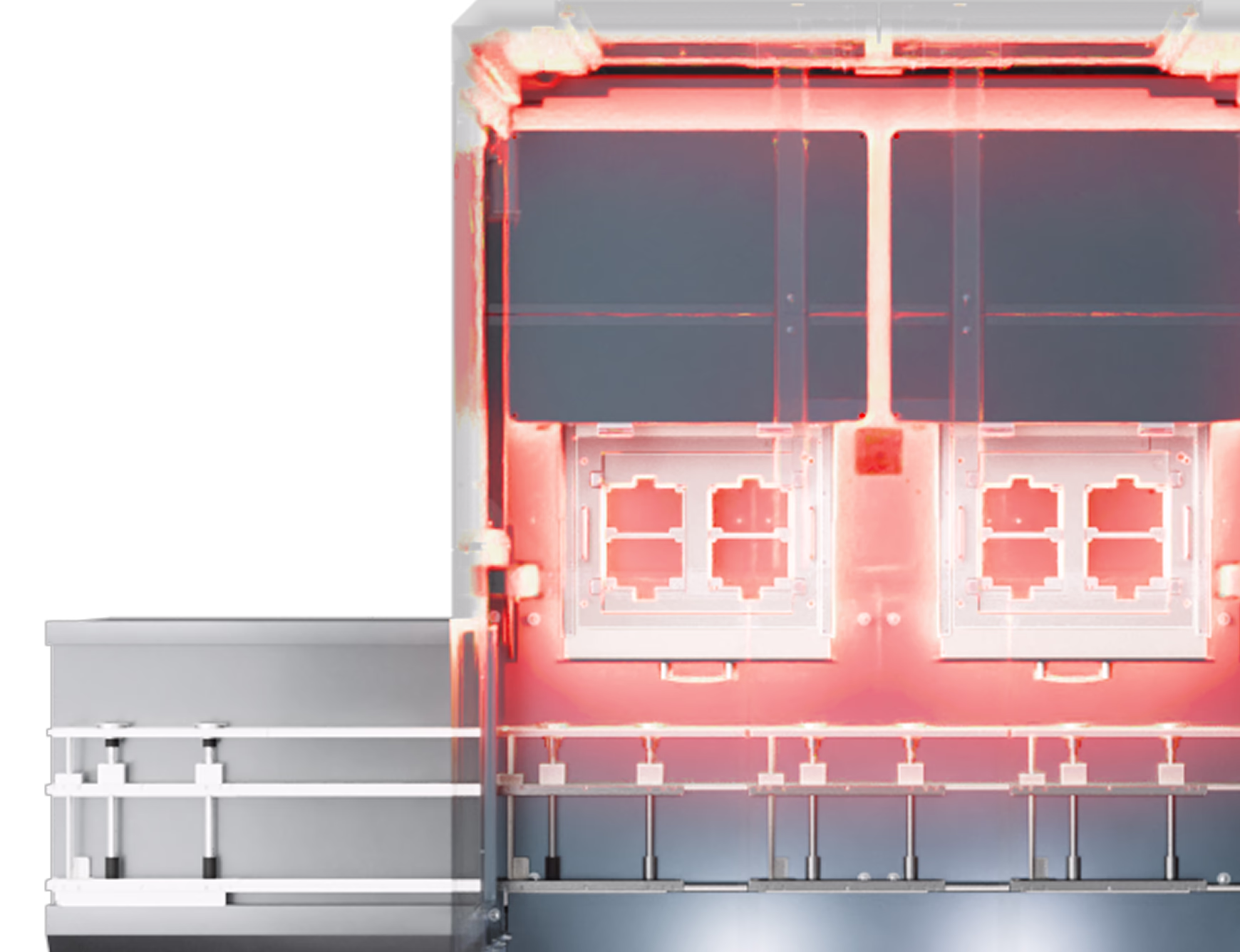

The optional fully automated drawer enables loading and unloading by robot. Our versatile ProCell Test test cell offers you a ready-to-use and fully automated solution for all your testing tasks.

schnaidt procell test

Maximum service life

Schnaidt adapter kits are solid, precise and offer outstanding contact properties as well as lasting process accuracy and repeat accuracy.

Available as a kit or needled and wired.

technical data

At a glance


height: 416 mm

width: 724 mm

depth: 610 mm

Usable area

380 × 325 mm

Contact force

2500N (reinforced version 3200N)

Pull-out stroke

480 mm

Parallel stroke

38 mm


Kein Datenblatt vorhanden


Contact us for detailed information or customised solutions.
